Mosaic Focal Camera

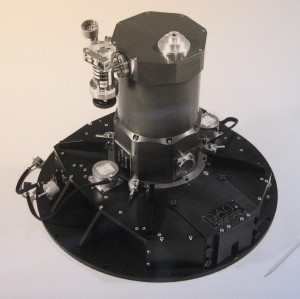

Mosiac Camera Assembly

Instrument Assembly

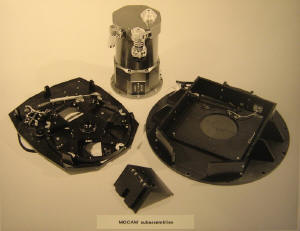

Camera Subassemblies

Major Subassemblies

This large-format camera uses 4 CCDs in a 2 x 2 array to provide wide field imaging at the prime focus of the 3.6 meter Canada France Hawaii Telescope.

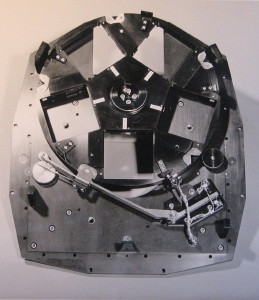

Filter Wheel

Filter Wheel

The filter wheel indexes with 10 arcsecond repeatibility.
